MODEL H2/H3
STANDARD

MODEL H4/H5
STANDARD

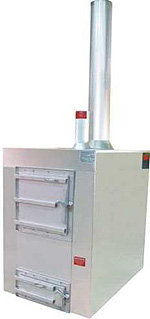

MODEL H25
HIGH CAPACITY

Specifications

Model

H2

Standard

H3

Economy

H4

Standard

H5

Economy

H8

Catalytic


H25

High Capacity

Max. BTU/ Hour Output

120,000

120,000

180,000

180,000

150,000

250,000

Fire Chamber Capacity

16 cu. ft.

16 cu. ft.

22.6 cu. ft.

22.6 cu. ft.

15.1 cu. ft.

26 cu. ft.

Maximum Log Length

30"

30"

30"

30"

30"

30"

Weight

650 lbs.

650 lbs.

850 lbs.

850 lbs.

750 lbs.

1000 lbs

Fuel

Wood

Wood

Wood

Wood

Wood

Wood

Water Capacity

100 Gallons

100 Gallons

130 Gallons

130 Gallons

85 Gallons

160 Gallons

Flue Size

6"

6"

8"

8"

6"

8 x 10" Insulated

Electrical Equipment

115 VAC, 60 Hz

115 VAC, 60 Hz

115 VAC, 60 Hz

115 VAC, 60 Hz

115 VAC, 60 Hz

115 VAC,
60 Hz

Dimensions







Furnace with Cover

30" x 52.5" x 59.5"

30" x 52.5" x 59.5"

40" x 52.5" x 59.5"

40" x 52.5" x 59.5"

30" x 52.5" x 59.5"

40" x 60.25
x 59.5"

Firebox

24"x32" x44"

24"x32"x4 4"

34"x32"x44 "

34"x32"x4 4"

24"x32"x4 4"

34" x 42" x 52"

Construction







Firebox, Water Tank, Base, Ash Bin, and Doors

14 &16 Gauge 304 Stainles s Steel

14 & 16 Gauge 304 Stainless Steel

14 & 16 Gauge 304 Stainless Steel

14 & 16 Gauge 304 Stainless Steel

14 & 16 Gauge 304 Stainless Steel

14 & 16
Gauge 304
Stainless
Steel

Smoke Stack and Outside Cover

26 Gauge 304 Stainles s Steel

26 Gauge 304 Stainless Steel

26 Gauge 304 Stainless Steel

26 Gauge 304 Stainless Steel

26 Gauge 304 Stainless  Steel

24 Gauge
304
Stainless
Steel


Furnace comes standard with.

  • Bronze circulator pump and controls
  • I-Beams & Grates
  • Combustion blower & controls
  • Domestic hot water exchanger
  • Electric fill valve system
